16 Gauge 3 Conductor Bonded Parallel Wire, 100ft

SKU
BP16s3

Product Details

Learn everything you want to know about this product to make an informed purchase

***SHIPS WITHIN 2-3 BUSINESS DAYS***

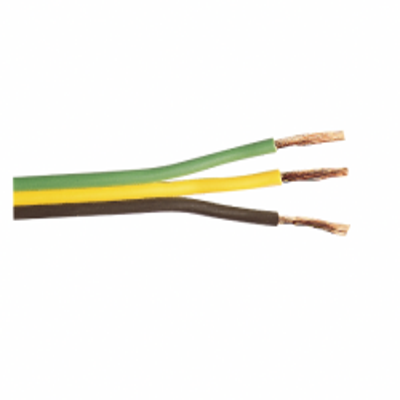

16 Gauge 3 Conductor Bonded Parallel Wire, 100ft

Applications:
Multiple primary wires parallel bonded with color-coding for identification purposes. Especially ideal for use in RVs, marine, and utility trailer applications. Built to stay together under the toughest operating conditions yet easy to separate at the end of a run for final terminal connection. All-copper stranded core is highly conductive maximizing current transfer while remaining flexible for easy installation. Customized printing is available to best meet individual needs.

Standards: SAE J1128, SAE J378

Color Code:
3 Conductors: Brown/Yellow/Green

Specifications*:

Size: 16 Gauge
Conductors: 3
Number of Strands: 19/29
Voltage: 60 Volts or Less
Temp: : Rated –30°C (–22°F) to 80°C (176°F)
Outside Diameter: 0.102 x 0.306 inches
Length: 100 ft.
Weight: 4 lbs.

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size16 AWG
# of Conductors3 Conductors
O.D. (Inches)0.102 x 0.306 in.
