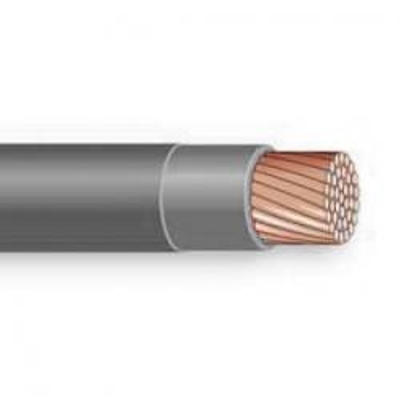

16 AWG, Type MTW/UL1015 Wire, 26 Strand, 500' or 1000' Spool

SKU MTW16

$

0.170000

0.170000

/ft
How will you purchase this wire?
0.170000 0.170000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

.... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... .... ....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

16 AWG, Type MTW/UL1015 Wire, 26 Strand, 500' or 1000' Spool

Grouped product items
Color Length (ft.)
Black Length 500 ft.
$85.00
Green Length 500 ft.
$85.00
White Length 500 ft.
$85.00
Red Length 500 ft.
$85.00
Orange Length 500 ft.
$85.00
Yellow Length 500 ft.
$85.00
Blue Length 500 ft.
$85.00
Brown Length 500 ft.
$85.00
Gray Length 500 ft.
$85.00
Purple Length 500 ft.
$85.00
Light Blue Length 500 ft.
$85.00
Pink Length 500 ft.
$85.00
Black Length 1000 ft.
$170.00
Green Length 1000 ft.
$170.00
White Length 1000 ft.
$170.00
Red Length 1000 ft.
$170.00
Orange Length 1000 ft.
$170.00
Yellow Length 1000 ft.
$170.00
Blue Length 1000 ft.
$170.00
Brown Length 1000 ft.
$170.00
Gray Length 1000 ft.
$170.00
Purple Length 1000 ft.
$170.00
Light Blue Length 1000 ft.
$170.00
Pink Length 1000 ft.
$170.00
Yellow w/ Green Stripe Length 1000 ft.
$170.00
Green w/ Yellow Stripe Length 1000 ft.
$170.00
White w/ Yellow Stripe Length 1000 ft.
$170.00
Blue w/ Red Stripe Length 1000 ft.
$170.00
Orange w/ White Stripe Length 1000 ft.
$170.00
Orange w/ Green Stripe Length 1000 ft.
$170.00
Yellow w/ Blue Stripe Length 1000 ft.
$170.00
Blue w/ White Stripe Length 1000 ft.
$170.00
Orange w/ Blue Stripe Length 1000 ft.
$170.00
White w/ Blue Stripe Length 1000 ft.
$170.00
Orange w/ Black Stripe Length 1000 ft.
$170.00
Black w/ Blue Stripe Length 1000 ft.
$170.00
Pink w/ Black Stripe Length 1000 ft.
$170.00
Green w/ 3 Yellow Stripes Length 1000 ft.
$170.00
White w/ Orange Stripe Length 1000 ft.
$170.00
White w/ Red Stripe Length 1000 ft.
$170.00
White w/ Green Stripe Length 1000 ft.
$170.00
Gray w/ Green Stripe Length 1000 ft.
$170.00
Gray w/ Brown Stripe Length 1000 ft.
$170.00
Blue w/ Black Stripe Length 1000 ft.
$170.00
Green w/ Black Stripe Length 1000 ft.
$170.00
Brown w/ White Stripe Length 1000 ft.
$170.00
Brown w/ Yellow Stripe Length 1000 ft.
$170.00
Purple w/ Black Stripe Length 1000 ft.
$170.00
Red w/ Black Stripe Length 1000 ft.
$170.00
Orange w/ Red Stripe Length 1000 ft.
$170.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    MTW - Machine Tool Wire

  • Wire Size

    16 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Bare Copper

  • O.D. (Inches)

    0.124

  • Insulation Material

    PVC - Polyvinyl Chloride

  • Direct Burial

    No

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

STRIPED COLORS ARE NON-STOCK ITEMS & MAY TAKE 4-5 DAYSS TO SHIP

1000 Ft Min Stripe

16 AWG MTW/UL1015 Hook-Up Stranded Wire, 600V. 500ft or 1000ft Spool.

Applications:
16 AWG UL1015 Type conductors are primarily used in control cabinets, in machine tool applications and appliance wiring applications. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.

Conductor:
Bare Copper

Insulation:
Polyvinyl Chloride (PVC)

Standards:
UL recognized AWM Style 1015 per 758. Passes VW-1 vertical flame test. CSA TEW or AWM

Specifications*:

Size: 16 AWG
Number of Strands: 26
Temp: 105°C
Insulation Thickness: 0.031 inches
Outside Diameter: 0.124 inches
Weight: 0.014 lbs per ft
Voltage: 600V

*Data provided on this page is subject to change based on different manufacturers variances.
