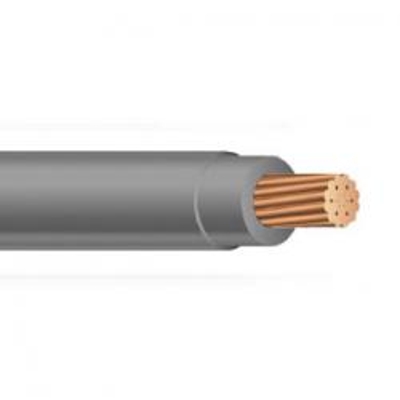

16 AWG Stranded TFFN Building Wire

16 AWG Stranded TFFN Building Wire
SKU TFN16

$

0.162000

0.162000

/ft
How will you purchase this wire?
0.162000 0.162000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

.... .... .... .... .... .... .... .... .... .... ....

Multiple lengths can be selected

500 1000 2500
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

16 AWG Stranded TFFN Building Wire

Grouped product items
Color Length (ft.)
Black Length 500 ft.
$81.00
Green Length 500 ft.
$81.00
Brown Length 500 ft.
$81.00
Gray Length 500 ft.
$81.00
White Length 500 ft.
$81.00
Red Length 500 ft.
$81.00
Blue Length 500 ft.
$81.00
Orange Length 500 ft.
$81.00
Yellow Length 500 ft.
$81.00
Purple Length 500 ft.
$81.00
Dark Blue/White Stripe Length 500 ft.
$81.00
Black Length 1000 ft.
$162.00
Green Length 1000 ft.
$162.00
Brown Length 1000 ft.
$162.00
Gray Length 1000 ft.
$162.00
White Length 1000 ft.
$162.00
Red Length 1000 ft.
$162.00
Blue Length 1000 ft.
$162.00
Orange Length 1000 ft.
$162.00
Yellow Length 1000 ft.
$162.00
Purple Length 1000 ft.
$162.00
Dark Blue/White Stripe Length 1000 ft.
$162.00
Black Length 2500 ft.
$405.00
Green Length 2500 ft.
$405.00
Brown Length 2500 ft.
$405.00
Gray Length 2500 ft.
$405.00
White Length 2500 ft.
$405.00
Red Length 2500 ft.
$405.00
Blue Length 2500 ft.
$405.00
Orange Length 2500 ft.
$405.00
Yellow Length 2500 ft.
$405.00
Purple Length 2500 ft.
$405.00
Dark Blue/White Stripe Length 2500 ft.
$405.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    TFN/TFFN-2

  • Wire Size

    16 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    0.099

  • Ampacity

    8

  • Temp. Rating

    90°C

  • Insulation Material

    PVC - Polyvinyl Chloride

  • Jacket Material

    Nylon

  • Standards

    UL Listed, RoHS Compliant

  • Features

    Oil & Gas Resistant, Heat Resistant, Moisture Resistant, Abrasion Resistant

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Applications:
Type TFFN or MTW or AWM may be used as fixture wire, machine tool wiring, or appliance wiring material as specified in the 2008 National Electrical Code. When used as Type TFFN, conductor is suitable for use at temperatures not to exceed 90°C. When used as Type MTW, conductor is suitable for use in wet locations or when exposed to oil or coolant at temperatures not to exceed 60°C or dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79). Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as appliance wiring material. Voltage for all applications is 600 volts.

Standards:
UL Standard 66
National Electrical Code
RoHS Compliant

Construction:
Type TFFN or MTW or AWM copper conductors are annealed (soft) copper, insulated with a tough, heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polyamide) jacket is applied.

Specifications*:

Size: 16 AWG
Number of Strands: 26
Vinyl Insulation Thickness: 0.015 inches
Nylon Jacket Thickness: 0.004 inches
Outside Diameter: 0.099 inches
Weight: 0.009 lbs per ft
Allowable Ampacity: TFFN - 8 Amps / MTW - 10 Amps

*Data provided on this page is subject to change based on different manufacturers variances.
