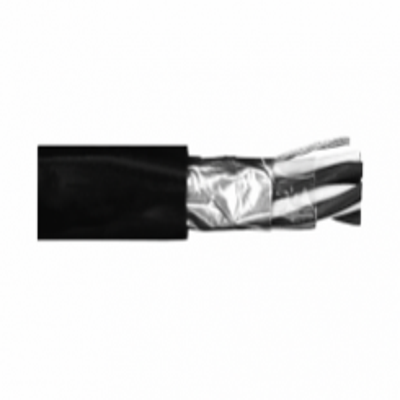

16 AWG 6 Pair, XLP/CPE Instrumentation Cable, Individual & Overall Shield, UL Type TC, 600V

SKU
XLP16-6SPOS

Product Details

Learn everything you want to know about this product to make an informed purchase

16 AWG 6 Pair XLP/CPE Instrumentaion Cable, Individual & Overall Shield w/ XLP Insulation & CPE Jacket, 600V, Sunlight Resistant, Approved for Direct Burial

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
In free air, raceways or direct burial.
In wet or dry locations.
Approved for direct burial, Class I, Div. 2 industrial hazardous locations per NEC.

Features:
Rated at 90˚C wet or dry
Ripcord applied to all cables with jacket thickness of 60 mils or less
Excellent physical, thermal and electrical properties
Excellent moisture resistance
Excellent resistance to compression cuts and heat deformation
Excellent flame resistance—burns to an ash; does not exhibit thermoplastic drip
Low coefficient of friction for easy pulling
Sunlight- and weather-resistant
Excellent low temperature cold bend characteristics
Meets cold bend test at -40˚C

Compliances:
Meets the requirements of UL 1277.
For type TC (tray cable) finished cable passes UL 1685 70,000 Btu and ICEA T-29-520 210,000 Btu flame tests
UL Listed as sunlight resistant and rated for direct burial

Conductor:
Stranded tinned copper per ASTM B33. Class B stranding per ASTM B8

Insulation:
Flame-retardant cross-linked polyethylene (XLP), per ICEA S-82-552 (NEMA WC55), UL Rated VW-1 conductors
Color-coded per ICEA Method 1, Table E-2 plus alpha-numeric printed numbers (does not include white or green)

Jacket:
Sunlight resistant, lead-free, Flame-retardant CPE- Chlorinated Polyethylene

Shield:
Individually shielded & overall shielded with aluminum/polyester in contact with stranded tinned copper drain wire.

Color Code:
Color-coded per ICEA Method 1:
Pairs - black and white

Specifications*:

Size: 16 AWG
Number of Pairs: 6
Insulaion Thickness: 0.030 inches
Overall Jacket Thickness: 0.060 inches
Outside Diameter: 0.747 inches
Net Weight: 0.315 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size16 AWG
# of Conductors8 Conductors
# of Pairs4 Pair
Conductor MaterialTinned Copper
O.D. (Inches)0.606
Jacket ColorBlack
