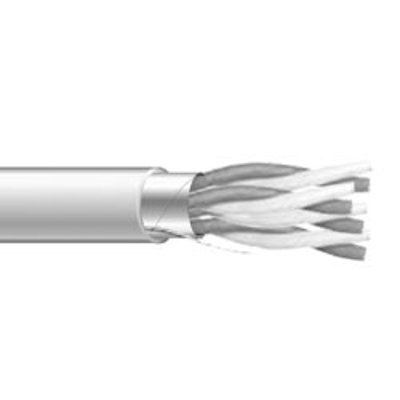

16 AWG, 4 Conductors, Communication Cable, Braided Shield

General C1604, Communication & Control Cable, Multi-Conductor, Carolprene®, Braid Shield

Color:
Black

Applications:
Control circuits, broadcast and studio applications, audio interconnects. Suggested voltage rating: 300 volts

Features:
- Impact- and abrasion-resistant
- Stranded conductors for superior flexibility
- Designed to meet UL VW-1 Vertical Wire Flame Test

Compliance:
RoHS Compliant Directive 2002/95/EC

Conductor:
Fully annealed stranded tinned copper per ASTM B-33

Insulation:
- Premium-grade, coIor-coded rubber
- Color code:  Black, White, Red, Green

Shield:
80% tinned copper braid

Jacket:
- Carolprene®, black
- Temperature range: ‑20°C to +60°C

Specifications*:

Size: 16 AWG
Number of Conductors: 4
Conductor Stranding: 65/34
Nominal Insulation Thickness: 0.025 inches
Nominal Jacket Thickness: 0.035 inches
Outside Diameter: 0.385 inches

*Data provided on this page is subject to change based on different manufacturers variances.
