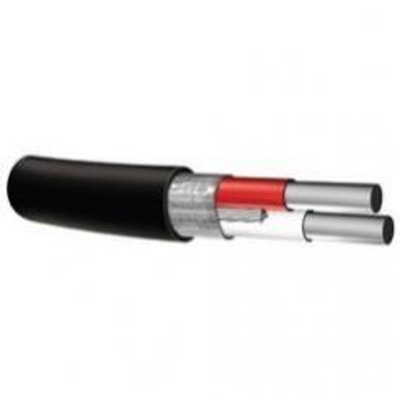

16 AWG 2 Conductors Type JX Unshielded Solid Thermocouple Wire, PVC Jacket
$
0.620000
0.620000
/ftProduct Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
Wire Size
16 AWG
-
# of Conductors
2 Conductors
-
O.D. (Inches)
0.111 x 0.192 in.
More information
16 AWG 2 Conductors Type JX Unshielded Solid Thermocouple Wire, PVC Jacket
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 2000'. Please call for longer put ups.
Applications:
Used to economically extend the thermocouple signal in aluminum and steel plants, pulp and paper, glass, automotive, petrochemical, heat treating and food processing industries.
Conductor:
Solid conductor
Insulation:
105°C flame-retardant Polyvinyl Chloride (PVC), average thickness is 15 mils
Jacket:
Polyvinyl Chloride (PVC), color coded per ISA/ANSI MC96.1
Assembly:
Two conductor parallel (duplex) construction
Color Code:
White/Red - Per ISA/ANSI MC96.1
Standards:
Meets the requirements of UL 13 and passes the IEEE 1202 flame test
Thermcouple Type:
Iron/Constantan Type JX
Specifications*:
Size: 16 AWG
Conductors: 2
Outside Diameter: 0.111 x 0.192
Temperature: 105°C
Voltage: 300V
*Data provided on this page is subject to change based on different manufacturers variances.
