$170.00 /sp.

In Stock

General C2405A Altermative to Belden 8471, UL 2464, UL 2587, NEC Type CM, CSA CMG

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

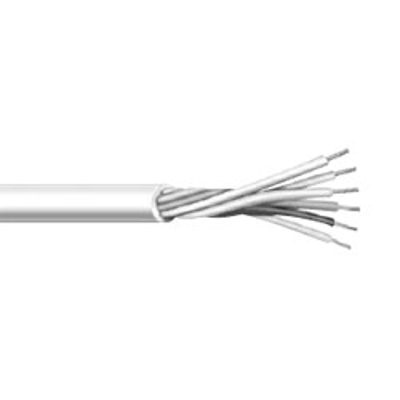

16 AWG, 2 Conductor, Communication Cable, Unshielded, 500ft or 1000ft Spool


Product Details

Learn everything you want to know about this product to make an informed purchase

General C2405A Altermative to Belden 8471 , UL 2464, UL 2464, UL 2576, NEC Type CM (UL) c(UL), CSA CMG

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.


Public address systems, Intercoms, Internal telephones, Remote control circuits, Suitable for EIA RS-232 applications, Suggested voltage rating: 300 volts

- NEC Article 725 Type CL3 (UL: 75°C)
- NEC Article 800 Type CM (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V)
- CSA CMG (CSA 60°C)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test
- Passes CSA CMG Flame Test

Fully annealed, stranded tinned copper per ASTM B-33

Premium-grade, coIor-coded S-R PVC per UL 1061

PVC, gray
-20°C to +80°C


Size: 16 AWG
Number of Conductors: 2
Conductor Stranding: 19/.0117
Nominal Insulation Thickness: 0.021 inches
Nominal Jacket Thickness: 0.032 inches
Outside Diameter: 0.260 inches
Nomonal C-C Cap. pF/ft: 30.5
Twists per foot: Approx. 4 twists

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size16 AWG
# of Conductors2 Conductors
O.D. (Inches)0.26 in.
Alt to Belden #8471
Shield TypeUnshielded
