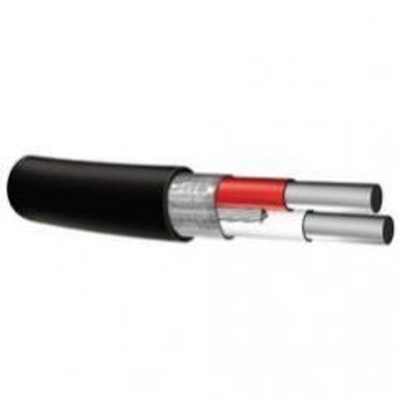

16 AWG 1 Pair Type JX Overall Shield Solid Thermocouple Wire, PLTC, PVC Jacket
Product Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
Wire Size
16 AWG
-
# of Conductors
2 Conductors
-
# of Pairs
1 Pair
-
O.D. (Inches)
0.26
-
Shield Type
Overall Foil Shield
More information
16 AWG 1 Pair Type JX Overall Shield Solid Thermocouple Wire, PLTC, PVC Jacket
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 2000'. Please call for longer put ups.
Applications:
Used to economically extend the thermocouple signal in aluminum and steel plants, pulp and paper, glass, automotive, petrochemical, heat treating and food processing industries.
Conductor:
Solid conductor
Insulation:
105°C flame-retardant Polyvinyl Chloride (PVC), average thickness is 15 mils
Jacket:
Flame-retardant Polyvinyl Chloride (PVC), color coded per ISA/ANSI MC96.1
Assembly:
Twisted pairs, with one conductor in each group number identified, the cable core has an overall aluminum/Mylar shield with a tinned copper drain wire
Color Code:
Per ISA/ANSI MC96.1 latest revision
Standards:
Meets the requirements of UL 13 and passes the IEEE 1202 flame test
Thermcouple Type:
Iron/Constantan Type JX
Specifications*:
Size: 16 AWG
Number of Pairs: 1 (2 Conductors)
Outside Diameter: 0.260 inches
Temperature: 105°C
Voltage: 300V
*Data provided on this page is subject to change based on different manufacturers variances.
