16/8 Yellow Flat Festoon Cable (PVC). Cut to length - sold by the Foot.
Material Due Date: End of December 2023

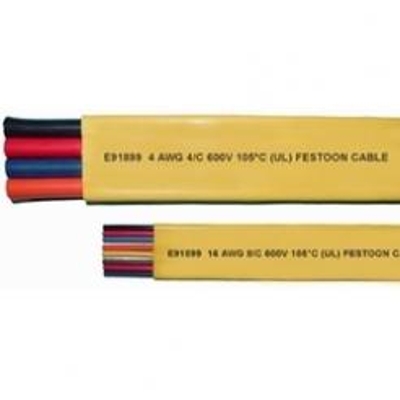

16/8 Yellow Flat Festoon Cable (PVC)
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1 ft. to maximum 1000 ft. Please call for longer put ups.
Flat Festoon Cable (PVC) is designed for coninuous flexing applications including festooning systems, cranes, hoists, track systems, conveyors & robots.
Oil and chemical resistant. UV resistant. High flexibility. Small bending radius. UL Listed and CSA Certified for indoor and outdoor use. -40°C-105°C
PVC - Polyvinyl Chrloride
Size: 16 AWG
Number of Conductors: 8
Conductor Strand: 65/34
Insulation Thickness: 0.030 inches
Outside Diameter: 0.200 x 1.110
Weight: 0.173 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||Flat Festoon Cable|
|Wire Size||16 AWG|
|# of Conductors||8 Conductors|
|Conductor Material||Bare Copper|
|O.D. (Inches)||0.200 x 1.110 in.|
