16-4C FPLR Riser, Fire Alarm, Shielded, 500ft or 1000ft Spool

SKU FLR164CS

$

0.425680

0.425680

/ft
How will you purchase this wire?
0.425680 0.425680
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

16-4C FPLR Riser, Fire Alarm, Shielded, 500ft or 1000ft Spool

Grouped product items
Color Length (ft.)
Red Length 500 ft.
$212.84
Red Length 1000 ft.
$425.68
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    16 AWG

  • # of Conductors

    4 Conductors

  • O.D. (Inches)

    0.205

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

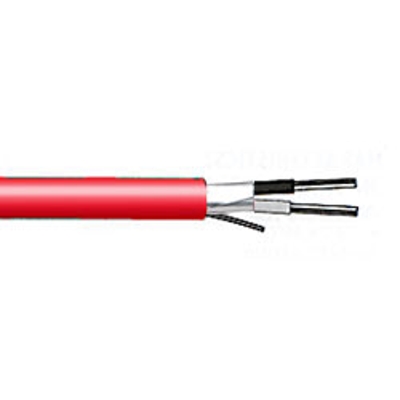

Multi-Conductor, Shielded, Riser, NEC Type FPLR Cable.

Color:
Red

Applications:
Wiring of fire alarms, smoke detectors, voice communications, burglar alarms, fire protective circuits.

Features:
Two bare copper insulated conductors with an overall shield and a drain. The assembly has an overall jacket. Rated for use from -20°C to +60°C. Suggested voltage rating: 300 volts.

Compliances:
Industry Compliances:
- NEC Articles 760
- UL Standard 1424
Flame Test Compliances:
- UL 1666 Riser Flame Test

Conductor:
Solid, fully annealed bare copper to ASTM B3

Insulation:
PVC

Shield:
0.001 inch Aluminum/Mylar

Drain:
24 AWG Solid Tined Copper

Jacket:
Red Premium-grade Polyvinyl Chloride (PVC)

Specifications*:

Size: 16 AWG
Number of Conductors: 4
Nominal Insulation Thickness: 0.008 inches
Nominal Jacket Thickness: 0.015 inches
Outside Diameter: 0.205 inches

*Data provided on this page is subject to change based on different manufacturers variances.
