$1.19 /ft.

In Stock

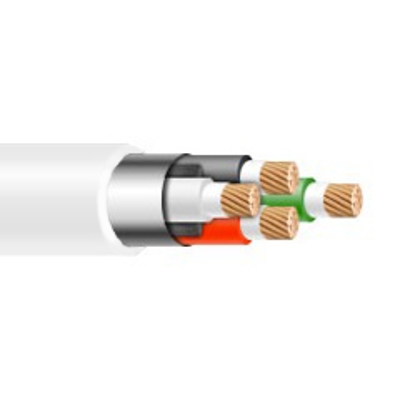

STOW White Flexible Portable Cord. Cut to length - sold by the Foot.

Min: 30 ft., Max: 3000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

16/4 STOW White Flexible Portable Cord 600v UL/CSA

SKU
STO16s4W-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.

Jacket:
White

Applications:
STOW Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.

Jacket:
Polyvinylchloride (PVC), White Jacket. Temperature range: -20ºC to +60ºC. Voltage rating: 600 Volts.

Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone

Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)

Construction:
Conductors:
18 through 6 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.

Specifications*:

Size: 16 AWG
Number of Conductors: 4
Conductor Strand: 26/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 10.80 mm / 0.425 inches
Weight: 0.110 lbs per ft
Current Amps: 10 (Green conductor for grounding only)

Color Code:
4 Conductors: Black, White, Red, Green

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size16 AWG
# of Conductors4 Conductors
O.D. (Inches)0.425
Ampacity 10
Jacket ColorWhite
