Out Of Stock
SOOW Flexible Portable Cord. Cut to length - sold by the Foot.

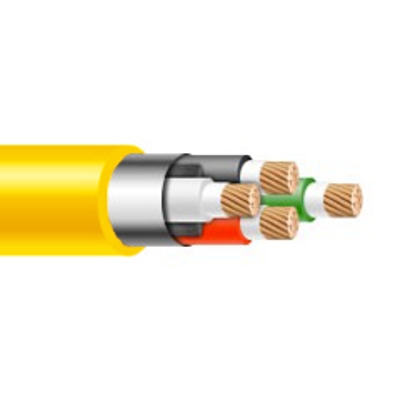

16/4 SOOW Yellow Portable Cord 600V UL/CSA
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50 ft. to maximum 1000 ft. Please call for longer put ups.
Yellow SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery
Also Known As:
Yellow 16-4 SO Cord, Generator Cord, Yellow Rubber Cord, 16 Gauge 4 Wire Yellow Cord.
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Premium-grade, color-coded 90ºC EPDM.
Size: 16 AWG
Number of Conductors: 4
Conductor Strand: 26/30
Insulation Thickness: 0.030 inches
Outside Diameter: 0.420 inches
Weight: 0.119 lbs per ft
Current Amps: 10
4 Conductors – Black, White, Red, Green
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||16 AWG|
|# of Conductors||4 Conductors|
|Conductor Material||Bare Copper|
|Stranded or Solid||Stranded|
|Temp. Rating||-50°C ~ 105°C|
|Indoor/Outdoor Use||Indoor, Outdoor|
|Standards||UL Listed, CSA Certified, RoHS Compliant, MSHA Approved|
|Features||Weather Resistant, Water Resistant, Oil Resistant|
|Color Code||Black, White, Red, Green|
