16/4 Quadraplex Brake Cable

Min: 50 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

16/4 Quadraplex Brake Cable

SKU
QBC16s4-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

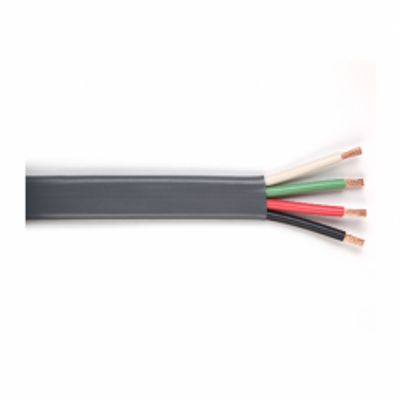

16/4 Quadraplex Brake Cable

Applications:
Four-conductor, general-purpose primary wires covered in a high quality PVC jacket. Especially ideal for use in truck, bus, tractor, light-duty boats, and general service applications. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128, SAE J378

Color Code:
4 Conductors: White/Green/Red/Black

Specifications*:

Size: 16 Gauge
Conductors: 4
Number of Strands: 19/29
Jacket Color: Gray
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated at –30°C (–22°F) to 105°C (221°F)
Outside Diameter: 0.185 x 0.500 inches
Weight: .072 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeBrake Cable
Wire Size16 AWG
# of Conductors4 Conductors
O.D. (Inches)0.185 x 0.500 in.
