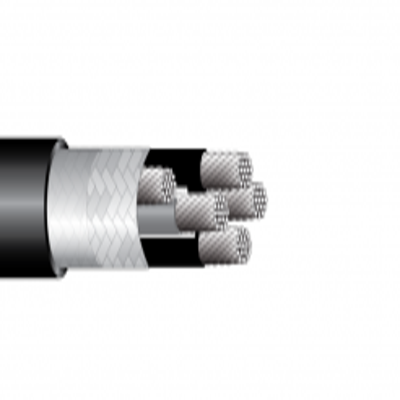

16-3C w/ Ground Shielded VFD Cable

XLPO Insulation, PVC Jacket, 600/1000V UL Type TC-ER, 90°C

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Applications:
Three Conductor Variable Frequency Drive Cables are primarily used with VFD’s. The three conductor construction is suitable for applications that are generally dry with one-phase fault conditions, where an insulated ground is not required.

Conductor:
Stranded tinned copper circuit conductors

Insulation:
Crossed-linked polyolefin (XLPO), flexible and low dielectric

Jacket:
Black polyvinyl chloride (PVC) jacket that is sunlight, moisture, oil and abrasion resistant, and direct burial rated. Rated for use from -40°C to 90°C

Shield:
Aluminum/Mylar/Aluminum tape 100% coverage & tinned copper braid

Grounding Conductor:
3 Stranded tinned copper conductors

Compliances:
• UL 1277, Type TC-ER, Type XHHW-2
• UL approved as 1000V flexible motor supply cable
• UL listed as VFD or WTTC per UL 2277 for Flexible Motor Supply and Wind Turbine Tray Cables
• CSA FT-4 Vertical tray flame test
• CSA AWM I/II A/B singles
•CSA Type AWM per CSA standard C22.2 No. 210-11
• c(UL) CIC-TC per CSA standard C22.2 No. 239-09 & 230-09
• Meets UL 1202/1583 70,000 BTU flame test
• Meets ICEA T-29-520 210,000 BTU flame test
• Suitable for use in Class I Division II hazardous locations
• 90°C DRY/WET
• RoHS II & REACH compliant

Specifications*:

Size: 16 AWG
Number of Conductors: 3
Conductor Strand: 26
Insulation Thickness: 0.046 inches
Ground Wire: 20 AWG x 3
Jacket Thickness: 0.050 inches
Outside Diameter: 0.442 inches

*Data provided on this page is subject to change based on different manufacturers variances.
