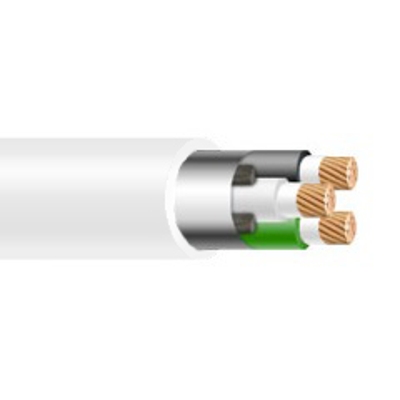

16/3 STOW White Flexible Portable Cord 600v UL/CSA
16/3 STOW White Flexible Portable Cord 600V UL/CSA
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.
16/3 STOW Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.
Polyvinylchloride (PVC), White Jacket. Temperature range: -20ºC to +60ºC. Voltage rating: 600 Volts.
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)
18 through 6 AWG fully annealed stranded bare copper per ASTM B-174
Premium-grade, color-coded PVC.
Size: 16 AWG
Number of Conductors: 3
Conductor Strand: 26/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 10.08 mm / 0.395 inches
Weight: 0.094 lbs per ft
Current Amps: 10 (Green conductor for grounding only)
3 Conductors: Black, White, Green
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||16 AWG|
|# of Conductors||3 Conductors|
