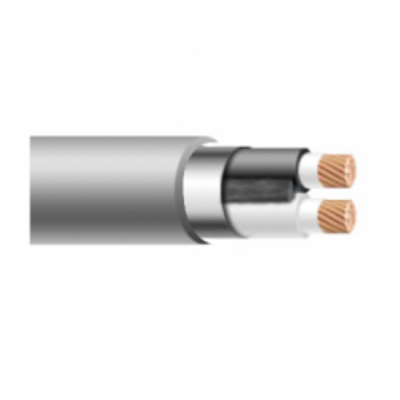

STO Flexible Portable Cord. Cut to length - sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchase Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put ups.
Applications:
STO Flexible Cord applications include portable tools, motors, floor maintenance equipment, hospital equipment, sound equipment, washing machines, portable lights, lamps and similar equipment.
Jacket:
Polyvinylchloride (PVC), Gray or Yellow. Temperature range: -20ºC to +60ºC. Voltage rating: 600 Volts.
Features:
Oil resistant jacket. Resists: Oils, Acids, Alkalies, Ozone
Standards:
UL Flexible Cord - UL Subject 62
MSHA Approved (where applicable)
Construction:
Conductors:
18 through 6 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded PVC.
Specifications*:
Size: 16 AWG
Number of Conductors: 2
Conductor Strand: 26/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 9.58 mm / 0.375 inches
Weight: 0.078 lbs per ft
Current Amps: 13 (Green conductor for grounding only)
Color Code:
2 Conductors: Black, White
*Data provided on this page is subject to change based on different manufacturers variances.
| Wire Size | 16 AWG |
|---|---|
| # of Conductors | 2 Conductors |
| Conductor Material | Bare Copper |
| O.D. (Inches) | 0.375 |
| Ampacity | 13 |
| Jacket Color | Yellow, Gray |
