Material Due Date: End of January 2022

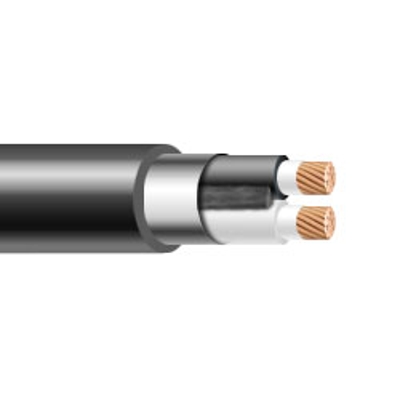

16/2 SJEOOW Portable Cord 300V Ul/CSA
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
SJEOOW Flexible Portable Cord applications include include wiring for industrial machinery, washing machines and various other large appliances, heavy-duty tools, motors, and temporary electrical power and lighting installations for construction sites.
Excellent resistance to oil and moisture. High flexibility. Excellent abrasion resistance. Water-resistant. Sunlight-resistant. Temperature range: -50ºC to +105ºC
UL Flexible Cord - UL Standard 62
CSA Flexible Cord - C22.2-49
NEC Article 501.140 Class I Div. 2
NEC Article 400
Federal Spec JC580
EPA 40 CFR, Part 26, Subject C, heavy metals per Table 1, TCLP method
Fully annealed stranded bare copper per ASTM B-174
Size: 16 AWG
Number of Conductors: 2
Conductor Strand: 26/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 7.87 mm / 0.310 inches
Weight: 0.05 lbs per ft
Current Amps: 13
2 Conductors: Black, White
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||16 AWG|
|# of Conductors||2 Conductors|
|Conductor Material||Bare Copper|
|Stranded or Solid||Stranded|
|Temp. Rating||-50°C ~ 105°C|
|Insulation Material||TPE - Thermoplastic Elastomer|
|Jacket Material||TPE - Thermoplastic Elastomer|
|Indoor/Outdoor Use||Indoor, Outdoor|
|Standards||UL Listed, CSA Certified, MSHA Approved|
|Features||Weather Resistant, Water Resistant, Oil Resistant|
