Marine Grade, 16/2 Duplex Marine Cable, Tinned Copper Stranding

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft. Spool
500 ft. Spool
Color Code: Black/White
Color Code: Black/Red
Add a length

 Free Shipping on all orders over $1000

16/2 Duplex Marine Cable, Tinned Copper, UL 1426

SKU
MGBC16s2

Product Details

Learn everything you want to know about this product to make an informed purchase

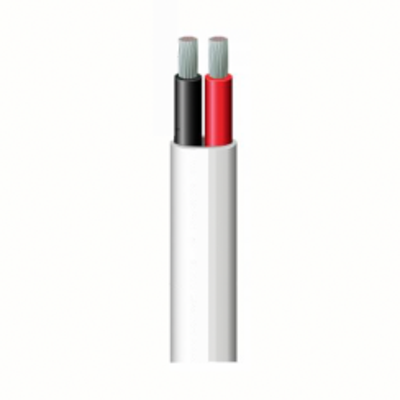

Marine Grade, 16/2 Duplex Marine Cable (Boat Cable), Tinned Copper Stranding, UL 1426

Applications:
UL Listed, multi-conductor tinned wire with white jacket is ideal for use in the high corrosive environment of marine applications. Special electro-tinned, copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. Tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. Flame retardant, PVC insulation is highly resistant to water, oil, grease, gasoline, and other damaging solvents. High voltage tolerance of up to 600 volts adds to versatility to its use in multiple marine and other suitable applications.

Standards: Meets DOT and Coast Guard specs for electrical systems

Color Code:
2 Conductors: Black/White or Black/Red or Red/Yellow

Specifications*:

Size: 16 Gauge
Conductors: 2
Number of Strands: 26/30
Jacket Color: White
Jacket Material: Polyvinylchloride (PVC)
Voltage: 600Volts
Temp: Rated at 105°C (221°F) dry and 75°C (167°F) wet
Outside Diameter: 0.205 x 0.328 inches
Weight: 0.053 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size16 AWG
# of Conductors2 Conductors
O.D. (Inches)0.205 x 0.328 in.
