16/2 Duplex Brake Cable

SKU
DBC16s2

Product Details

Learn everything you want to know about this product to make an informed purchase

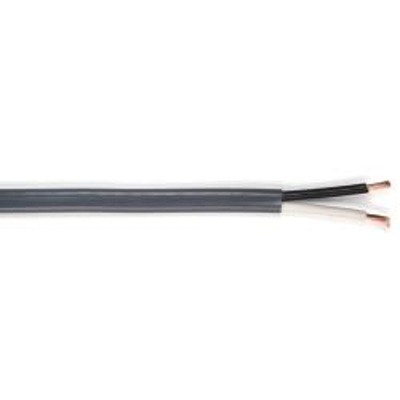

16/2 Duplex Brake Cable

Applications:
Two-conductor, general-purpose primary wires covered in a high quality PVC jacket. Especially ideal for use in truck, bus, tractor, light-duty boats, and general service applications. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128, SAE J378

Color Code:
2 Conductors: Black/White or Black/Red

Specifications*:

Size: 16 Gauge
Conductors: 2
Number of Strands: 19/29
Jacket Color: Gray
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated at –30°C (–22°F) to 105°C (221°F)
Outside Diameter: 0.185 x 0.290 inches
Weight: .045 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeBrake Cable
Wire Size16 AWG
# of Conductors2 Conductors
O.D. (Inches)0.185 x 0.290 in.
