In Stock

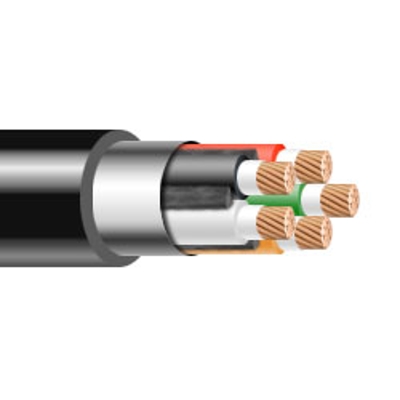

SOOW Flexible Portable Cord. Cut to length - sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1 ft. to maximum 1000 ft. Please call for longer put ups.
Color:
Black
Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery
Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC
Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant
Construction:
Conductors:
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.
Specifications*:
Size: 16 AWG
Number of Conductors: 14
Conductor Strand: 26/30
Insulation Thickness: 0.030 inches
Outside Diameter: 0.740 inches
Weight: 0.355 lbs per ft
Current Amps: 5
Color Code Chart:
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Cable Type | SOOW - 600V |
| Wire Size | 16 AWG |
| # of Conductors | 14 Conductors |
| Conductor Material | Bare Copper |
| Stranded or Solid | Stranded |
| O.D. (Inches) | 0.73 |
| Ampacity | 5 |
| Voltage | 600V |
| Temp. Rating | -40°C ~ 90°C |
| Insulation Material | EPDM Rubber |
| Jacket Material | CPE - Chlorinated Polyethylene |
| Flexibility | High Flexibility |
| Indoor/Outdoor Use | Indoor, Outdoor |
| Shielded | No |
| Standards | UL Listed, CSA Certified, RoHS Compliant, MSHA Approved |
| Features | Weather Resistant, Water Resistant, Oil Resistant |
