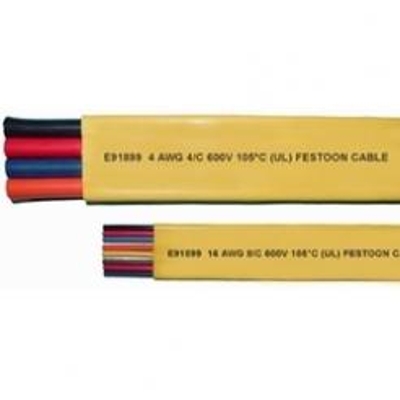

16/12 Yellow Flat Festoon Cable (PVC)

SKU
FFC16s12-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 20 ft. to maximum 1000 ft. Please call for longer put ups.

Color:
Yellow

Applications:
Flat Festoon Cable (PVC) is designed for coninuous flexing applications including festooning systems, cranes, hoists, track systems, conveyors & robots.

Features:
Oil and chemical resistant.  UV resistant. High flexibility. Small bending radius.  UL Listed and CSA Certified for indoor and outdoor use. -40C-105C

Standards:
UL VW-1
UL/CSA Certified

Jacket Material:
PVC - Polyvinyl Chrloride

Conductor Material:
Bare Copper

Specifications*:

Size: 16 AWG
Number of Conductors: 12
Conductor Strand: 65/34
Insulation Thickness: 0.030 inches
Outside Diameter: 0.225 x 1.700
Weight: 0.292 lbs per ft
Voltage: 600V



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeFlat Festoon Cable
Wire Size16 AWG
# of Conductors12 Conductors
O.D. (Inches)0.225 x 1.700 in.
Jacket ColorYellow
