$80.00

Ships in 2-3 Business Days

Marine Grade, 14 Gauge Marine Wire, Tinned Copper Stranding

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft. Spool
1000 ft. Spool
Black
Red
Add a length

 Free Shipping on all orders over $1000

14 Gauge Marine Wire, Tinned Copper, UL 1426

SKU
MGBC14

Product Details

Learn everything you want to know about this product to make an informed purchase

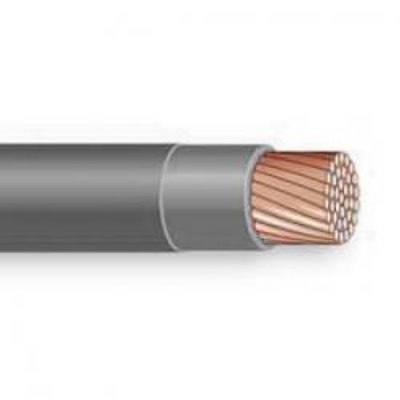

Marine Grade, 14 Gauge Marine Wire (Boat Cable) Tinned Copper Stranding, UL 1426.  500ft Spool

Applications:
UL Listed, single-conductor tinned wire ideal for use in the high corrosive environment of marine applications. Special electro-tinned, copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. Tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. Flame retardant, PVC insulation is highly resistant to water, oil, grease, gasoline, and other damaging solvents. High voltage tolerance of up to 600 volts adds to versatility to its use in multiple marine and other suitable applications.

Standards: Meets DOT and Coast Guard specs for electrical systems

Specifications*:

Size: 14 Gauge
Number of Strands: 41/30
Voltage: 600Volts
Temp: Rated at 105°C (221°F) dry and 75°C (167°F) wet
Jacket Material: Polyvinylchloride (PVC)
Outside Diameter: 0.138 inches
Weight: 0.020 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size14 AWG
# of Conductors1 Conductor
O.D. (Inches)0.138
