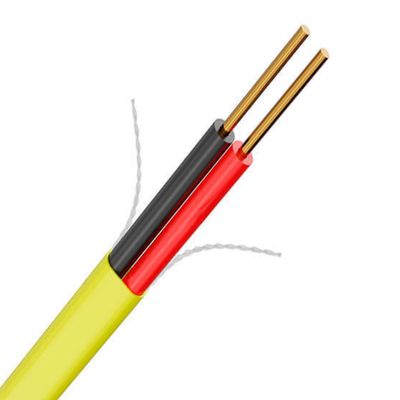

14/2 Conductor Parallel Communication Irrigation Cable

Description:
Parallel communication cable is manufactured for the power and control of irrigation. It is direct burial rated.

Conductor construction is tin coated, soft drawn bare copper meeting the requirements of ASTM Specification 33. The two conductors shall be insulated with a high quality Polyvinylchloride (PVC) for system applications up to 600 volts. One conductor will be insulated black and the other conductor insulated red. Both conductors shall be of the same size as specified and/or shown on the drawings and as required for the proper operation of the Satellite and Decoder units connected to it.

The two conductors shall be laid parallel and pressure extruded with a solid color, low linear density, sunlight resistant polyethylene (HDPE) outer jacket. The jacket comes in a variety of colors to accommodate easy identification. Comes with pull cord for easy stripping.

Parallel communication cable is constructed in accordance with Underwriters Laboratories, Inc.

Application:
Suitable for power and control applications for irrigation systems

Construction:

Conductor: Tin coated, soft drawn bare copper (ASTM Spec. 33). Two (2) conductors Solid
Insulation:Polyvinylchloride (PVC)
Outer Jacket:Polyethylene (PE)

Specifications*:

Size: 14 AWG
# of Conductors: 2
Temp: 60°C
Conductor Insulation: 0.060 inches
Outside Jacket: 0.045 inches
Voltage: 600V

*Data provided on this page is subject to change based on different manufacturers variances.
