Belden 9314 equals General C0458A, NEC Type PLTC

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

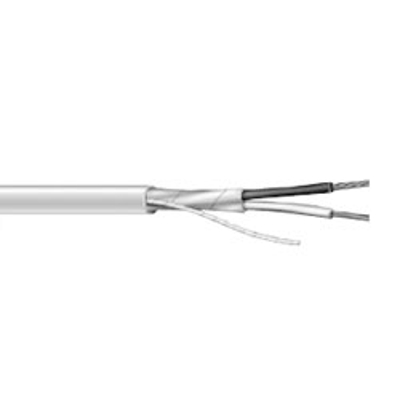

14 AWG, 2 Conductor, Power Limited Tray Cable, Foil Shield

SKU
COMC0458A

Product Details

Learn everything you want to know about this product to make an informed purchase

Belden 9314 equals General C0458A, NEC Type PLTC

A Cost-Effective Alternative to Belden
If you need cable and wire that matches Belden specifications without needing to be Belden brand, we can save you money. Our Belden equivelents are produced under the highest quality standards for extrusion, cabling, twisting, shielding and jacketing -- equivelent to Belden in every way except for the price.

Color:
Gray

Applications:
Cable tray installations, Power limited circuits, Intercom systems, Business machines, Cash registers, Industrial control systems, Petrochemical refineries, Suggested voltage rating: 300 volts, Burglar alarms

Compliances:
- NEC Article 725 Power-Limited Tray Cable (UL: 105°C, 300V)
- RoHS Compliant Directive 2002/95/EC
- Designed to meet UL 70,000 BTU Vertical Tray Flame Test

Conductor:
Fully annealed, stranded tinned copper per ASTM B-33

Insulation:
Premium-grade, color-coded PVC

Shield:
- 100% aluminum/polyester, 25% overlap, foil facing out
- Stranded tinned copper drain wire

Jacket:
PVC, gray
-20°C to +80°C

Specifications*:

Size: 14 AWG
Number of Conductors: 2
Conductor Stranding: 19/.0147
Nominal Insulation Thickness: 0.013 inches
Nominal Jacket Thickness: 0.042 inches
Outside Diameter: 0.288 inches
Nomonal Cap. pF/ft: A-72.5, B-131.0

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size14 AWG
# of Conductors2 Conductors
O.D. (Inches)0.288
Sunlight ResistantYes
Alt to Belden #9314
ShieldedYes
Shield TypeOverall Foil Shield
