$3.89 /ft.
Check Availability

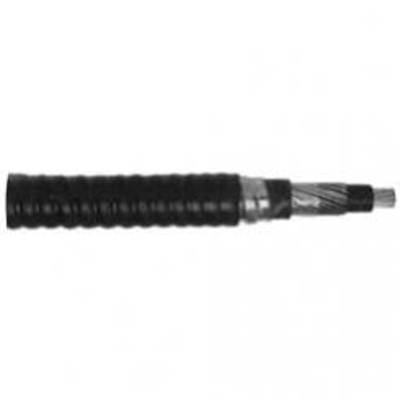

14-6C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V. Cut to length - sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchase<p><strong>14-6C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V<br /> XLP insulation<br /> Inner and outer PVC jackets</strong><br /> </p> <p><strong>Cut to length - sold by the foot. Enter the desired footage in the QTY box. </strong><br /> Minimum 50' to maximum 2500'. Please call for longer put ups.</p> <p><strong>Color:</strong><br /> Black</p> <p><strong>Applications:</strong><br /> Teck 90 is for use in power, control and lighting circuits at industrial and chemical plants, pulp and paper mills, steel mills, mines, power generating facilities, food processing plants and commercial centers. Teck 90 is suitable for installation in wet or dry locations in troughs, trays and in direct burial applications. Teck 90 is for applications up to 600 volts and temperatures from -40°C to +90°C.</p> <p><strong>Conductor:</strong><br /> Class B stranded, bare, soft copper</p> <p><strong>Insulation:</strong><br /> Cross-Linked Polyethylene (XLP)</p> <p><strong>Inner Jacket:</strong><br /> Polyvinyl Chloride (PVC) Black<br /> <br /> <strong>Outer Jacket:</strong><br /> Polyvinyl chloride (PVC) -40°C black polyvinyl chloride PVC outer jacket, which is water, chemical, sunlight and abrasion resistant</p> <p><strong>Grounding Conductor:</strong><br /> 14 AWG Bare stranded soft drawn copper<br /> <br /> <strong>Armor:</strong><br /> Interlocked aluminum tape armor <br /> <br /> <strong>Temperature:</strong><br /> -40°C to 90°C<br /> <br /> <strong>Voltage:</strong><br /> 600V<br /> </p> <p><strong>Specifications*:</strong></p> <p class="specs"><b>Size: </b>14 AWG<br /> <b>Number of Conductors: </b>6<br /> <b>Ground Wire Size: </b>14 AWG<br /> <b>Approx Diameter Inner Jacket: </b>0.520 inches<br /> <b>Approx Armor Diameter: </b>0.720 inches<br /> <b>Approx Diameter Outer Jacket: </b>0.830 inches<br /> <b>Net Weight: </b>0.309 lbs per ft<br /> </p> <p class="specs"> </p> <p>*Data provided on this page is subject to change based on different manufacturers variances.</p>
Wire Size | 14 AWG |
---|---|
O.D. (Inches) | 0.83 |
