14/6 Trailer Cable Wire, 100ft or 500ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft. Spool
500 ft. Spool
Add a length

 Free Shipping on all orders over $1000

14/6 Trailer Cable Wire

SKU
TRC14s6

Product Details

Learn everything you want to know about this product to make an informed purchase

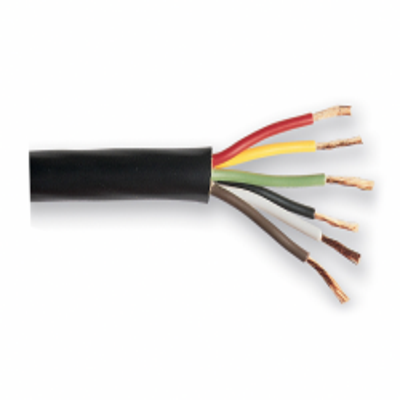

14 Gauge 6 Conductor Trailer Cable Wire

Applications:
General-purpose primary wires covered in a high quality, PVC jacket. Especially designed for reliability as an integral part of the brake and safety system. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128

Color Code:
6 Conductors: Red/Blue/Green/Yellow/Brown/Black or Red/Green/Brown/White/Black/Yellow

Specifications*:

Size: 14 Gauge
Conductors: 6
Number of Strands: 19/27
Jacket Color: Black
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated –55°C (–67°F) to 80°C (176°F)
Outside Diameter: 0.500
Length: 100ft or 500ft
Weight: 0.220 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeTrailer Cable
Wire Size14 AWG
# of Conductors6 Conductors
O.D. (Inches)0.5
