In Stock

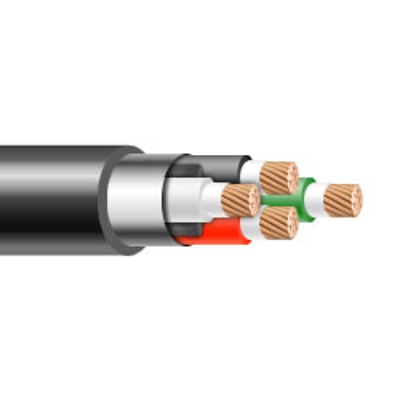

SJEOOW Flexible Portable Cord. Cut to length - sold by the Foot.
Product Details
Learn everything you want to know about this product to make an informed purchase Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put ups.
Color:
Black.
Applications:
SJEOOW Flexible Portable Cord applications include include wiring for industrial machinery, washing machines and various other large appliances, heavy-duty tools, motors, and temporary electrical power and lighting installations for construction sites.
Features:
Excellent resistance to oil and moisture. High flexibility. Excellent abrasion resistance. Water-resistant. Sunlight-resistant. Temperature range: -50ºC to +105ºC
Standards:
UL Flexible Cord - UL Standard 62
CSA Flexible Cord - C22.2-49
NEC Article 501.140 Class I Div. 2
NEC Article 400
Federal Spec JC580
MSHA Approved
EPA 40 CFR, Part 26, Subject C, heavy metals per Table 1, TCLP method
Construction:
Conductors:
Fully annealed stranded bare copper per ASTM B-174
Insulation:
TPE
Specifications*:
Size: 14 AWG
Number of Conductors: 4
Conductor Strand: 41/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 10.03 mm / 0.395 inches
Weight: 0.14 lbs per ft
Current Amps: 15
Color Code:
4 Conductors: Black, White, Red, Green
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 14 AWG |
# of Conductors | 4 Conductors |
Conductor Material | Bare Copper |
Stranded or Solid | Stranded |
O.D. (Inches) | 0.395 |
Ampacity | 15 |
Voltage | 300V |
Temp. Rating | -50°C ~ 105°C |
Insulation Material | TPE - Thermoplastic Elastomer |
Jacket Material | TPE - Thermoplastic Elastomer |
Jacket Color | Black |
Flexibility | High Flexibility |
Indoor/Outdoor Use | Indoor, Outdoor |
Standards | UL Listed, CSA Certified, MSHA Approved |
Features | Weather Resistant, Water Resistant, Oil Resistant |
