14/4-12/1-10/2 Gauge RV Cable Wire



Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft.
250 ft.
500 ft.
1000 ft.
Add a length

 Free Shipping on all orders over $1000

14/4-12/1-10/2 Gauge RV Cable Wire

SKU
TRC141210s2

Product Details

Learn everything you want to know about this product to make an informed purchase

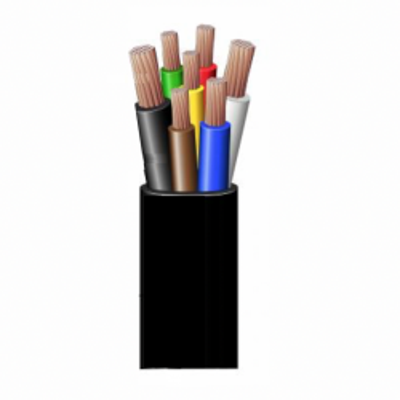

14 Gauge 4 Conductor + 12 Gauge 1 Conductor + 10 Gauge 2 Conductor RV Cable Wire, 100ft Spool

Applications:
General-purpose primary wires enclose in high quality black PVC jacket. Especially designed for use in Recreational Vehicle’s multiple electrical system connections. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128

Specifications*:

Size: 14 Gauge + 12 Gauge + 10 Gauge
Total Conductors: 7
Number of Strands: 19/27+ 19/25 + 19/23
Jacket Color: Black
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated –55°C (–67°F) to 80°C (176°F)
Outside Diameter: 0.560 inches
Length: 100 ft
Weight: 0.380 lbs per ft.

Color Code:
7 Conductors: Blue/Brown/Black/Green/Red/White/Yellow

More Information
Wire Size14 AWG
# of Conductors7 Conductors
O.D. (Inches)0.56
