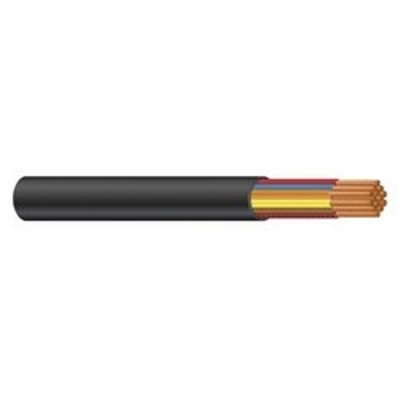

#14-3C XLP/LSZH Tray Cable, Low Smoke Zero Halogen

SKU LSZH143C

$

1.380000

1.380000

/ft
How will you purchase this wire?
1.380000 1.380000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

#14-3C XLP/LSZH Tray Cable, Low Smoke Zero Halogen

Color Length (ft.) Price
Black

Length (ft.)

$1.38
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$690.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    14 AWG

  • # of Conductors

    3 Conductors

  • O.D. (Inches)

    0.39

  • Ampacity

    25

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

#14-3C XLP/LSZH Tray Cable, Low Smoke Zero Halogen, 90°C, 600 V

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 2500'. Please call for longer put ups.

Color:
Black

Applications:
Designed for power and control, telemetering, relay control, traffic control, switching, lighting and signal transmission. May be used in Class I, Div. 2 and Class II, Div. 2 Hazardous Locations per NEC Art. 501 and 502. These cables also conform to Art. 392 "Cable Trays" and Art. 336 "Power and Control Tray Cable."

Compliances:
Meets UL 1277 requirements for Type TC cables having XHHW-2 conductors, cables are listed for direct burial and meet the IEEE 1202 and UL 1685. 70,000 Btu/hr flame tests

Conductor:
Class B stranded bare copper per ASTM B-3 and B-8

Insulation:
Cross-Linked Polyethylene (XLP) per ICEA S-73-532 (NEMA WC57), meets UL 44 requirements for VW-1, Type XHHW-2 conductors

Jacket:
Sunlight-resistant low smoke zero halogen thermoplastic per UL 1277

Color Code:
ICEA Method 1, Table E-2 (formerly K-2)

Ampacity:
Based on not more than three conductors in raceway or cable or earth with an ambient temperature of 30ºC and a conductor temperature of 90ºC per NEC Table 310.16, the values have been derated where applicable

Specifications*:

Size: 14 AWG
Number of Conductors: 3
Minimum AVG Insulation Thickness: 0.030 inches
Minimum AVG Jacket Thickness: 0.045 inches
Outside Diameter: 0.390 inches
Weight: 0.093 lbs per ft
Amps Per Conductor: 25

*Data provided on this page is subject to change based on different manufacturers variances.
