14/3 Triplex Brake Cable

SKU
TBC14s3

Product Details

Learn everything you want to know about this product to make an informed purchase

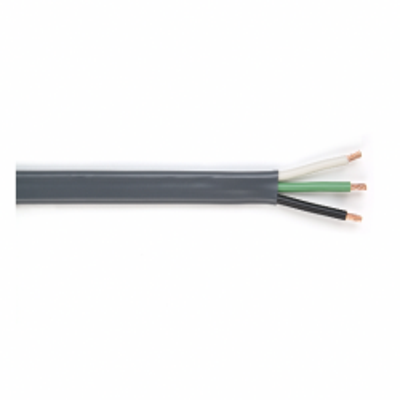

14/3 Triplex Brake Cable, 100ft Spool

Applications:
Three-conductor, general-purpose primary wires covered in a high quality PVC jacket. Especially ideal for use in truck, bus, tractor, light-duty boats, and general service applications. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128, SAE J378

Color Code:
3 Conductors: Black/Green/White

Specifications*:

Size: 14 Gauge
Conductors: 3
Number of Strands: 19/27
Jacket Color: Gray
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated at –30°C (–22°F) to 105°C (221°F)
Outside Diameter: 0.200 x 0.440 inches
Length: 100 ft
Weight: .100 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeBrake Cable
Wire Size14 AWG
# of Conductors3 Conductors
O.D. (Inches)0.200 x 0.440 in.
