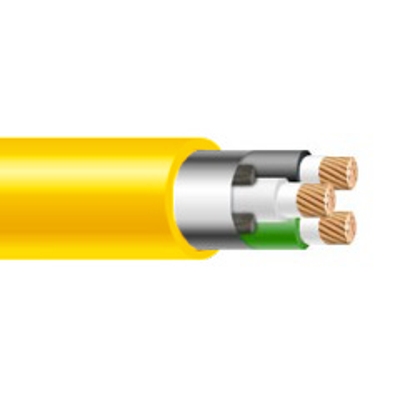

14/3 SJOOW Yellow Portable Cord 300V UL/CSA

Min: 25 ft., Max: 3000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

14/3 SJOOW Yellow Portable Cord 300V UL/CSA

SKU
SJOY14s3-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
Yellow

Applications:
Yellow SJOOW Flexible Portable Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery.

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Water-resistant. UL Listed and CSA Certified for indoor and outdoor use. Sunlight-resistant. Temperature range: -40ºC to +90ºC

Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant

Construction:
Conductors:
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.

Specifications*:

Size: 14 AWG
Number of Conductors: 3
Conductor Strand: 41/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 9.40 mm / 0.370 inches
Weight: 0.106 lbs per ft
Current Amps: 18

Color Code:
3 Conductors: Black, White, Green

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeSJOOW - 300V
Wire Size14 AWG
# of Conductors3 Conductors
Conductor MaterialBare Copper
Stranded or Solid Stranded
O.D. (Inches)0.37
Ampacity 18
Voltage300V
Temp. Rating-50°C ~ 105°C
Insulation MaterialEPDM Rubber
Jacket MaterialCPE - Chlorinated Polyethylene
Jacket ColorYellow
FlexibilityHigh Flexibility
Indoor/Outdoor UseIndoor, Outdoor
ShieldedNo
StandardsUL Listed, CSA Certified, RoHS Compliant, MSHA Approved
FeaturesWeather Resistant, Water Resistant, Oil Resistant
