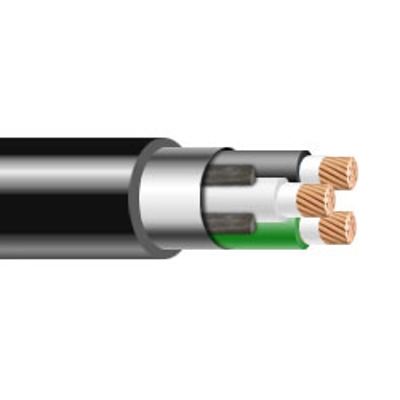

SJOOW Flexible Portable Cord. Cut to length - sold by the Foot.
14/3 SJOOW Portable Cord 300V UL/CSA
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 5000'. Please call for longer put ups.
SJOOW Flexible Portable Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery.
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Water-resistant. UL Listed and CSA Certified for indoor and outdoor use. Sunlight-resistant. Temperature range: -40ºC to +90ºC
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Premium-grade, color-coded 90ºC EPDM.
Size: 14 AWG
Number of Conductors: 3
Conductor Strand: 41/30
Insulation Thickness: 0.76 mm / 0.030 inches
Outside Diameter: 9.40 mm / 0.370 inches
Weight: 0.105 lbs per ft
Current Amps: 18
3 Conductors: Black, White, Green
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||SJOOW - 300V|
|Wire Size||14 AWG|
|# of Conductors||3 Conductors|
|Conductor Material||Bare Copper|
|Stranded or Solid||Stranded|
|Temp. Rating||-40°C ~ 90°C|
|Insulation Material||EPDM Rubber|
|Indoor/Outdoor Use||Indoor, Outdoor|
|Standards||UL Listed, CSA Certified, RoHS Compliant, MSHA Approved|
|Features||Weather Resistant, Water Resistant, Oil Resistant|
|Color Code||Black, White, Green|
