14-25C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V. Cut to length - sold by the Foot.

Min: 25 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

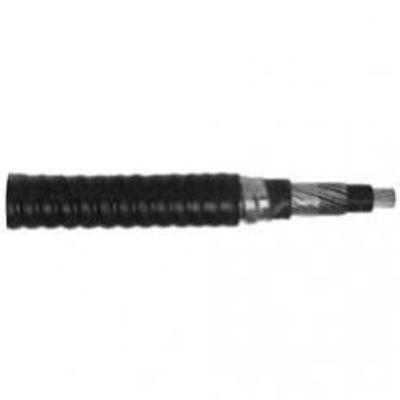

14-25C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V

SKU
TEK1425C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

14-25C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor, 600V
XLP insulation
Inner and outer PVC jackets



Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 2500'. Please call for longer put ups.

Color:
Black

Applications:
Teck 90 is for use in power, control and lighting circuits at industrial and chemical plants, pulp and paper mills, steel mills, mines, power generating facilities, food processing plants and commercial centers. Teck 90 is suitable for installation in wet or dry locations in troughs, trays and in direct burial applications. Teck 90 is for applications up to 600 volts and temperatures from -40°C to +90°C.

Conductor:
Class B stranded, bare, soft copper

Insulation:
Cross-Linked Polyethylene (XLP)

Inner Jacket:
Polyvinyl Chloride (PVC) Black

Outer Jacket:
Polyvinyl chloride (PVC) -40°C black polyvinyl chloride PVC outer jacket, which is water, chemical, sunlight and abrasion resistant

Grounding Conductor:
14 AWG Bare stranded soft drawn copper

Armor:
Interlocked aluminum tape armor

Temperature:
 -40°C to 90°C

Voltage:
 600V


Specifications*:

Size: 14 AWG
Number of Conductors: 25
Ground Wire Size: 14 AWG
Approx Diameter Inner Jacket: 1.020 inches
Approx Armor Diameter: 1.240 inches
Approx Diameter Outer Jacket: 1.360 inches
Net Weight: 0.899 lbs per ft




*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size14 AWG
O.D. (Inches)1.36
