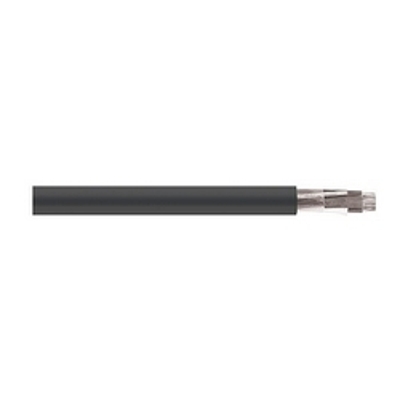

14/25C SDN Small Diameter Flexible Control Tray Cable

Small Diameter Control, Reel and Pendant, SDN - UL Type TC 90°C - 600 Volt

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50 ft. to maximum 1000 ft. Please call for longer put ups.

Color:
Black

Applications:
To be installed in trays, raceways, troughs, channels, ducts, conduit, and by direct burial. Recommended for wet or dry locations and outdoors in cable trays whre a sunlight resistant rating is required. Designed for control, power, lighting, telemetering, signal, relay traffic control, wherever flexible, small diameter cable is required such as cranes, hoists, and some robotics applications.

Compliances:
- OSHA acceptable
- Recognized for use in Class 1 or 2, Division 2 hazardous locations
- Cables pass UL 1277
- Cables are rated as Type TC, 600 volts, 90°C

Conductor:
Bare, soft annealed copper per ASTM B-3

Insulation:
Each conductor is concentrically insulated with a 15 mil wall of high dielectric flame retardant polymer with 5 mil wall of clear polymide (nylon) jacket extruded over primary insulation and conforming to UL requirements

Cabling:
The applicable number of conductors are cabled together with fillers as necessary suitable layer. A clear mylar tape is helically applied over the core.

Jacket:
Gas/vapor-tight heavy duty, flame and oil reisistant neoprene (black) per UL-1277 and ICEA S-73-532 part 4

Color Code:
Black, Red, Blue, Orange, Yellow, Brown, Red/Black Stripe, Blue/Black Stripe, Orange/Black Stripe, Yellow/Black Stripe, Black/Red Stripe, Orange/Red Stripe, Yellow/Red Stripe, Blue/Orange Stripe, Yellow/Orange Stripe

Specifications*:

Size: 14 AWG
Number of Conductors: 25
Conductor Strand: 19/.0147
Overall Jacket Thickness: 0.080 inches
Outside Diameter: 0.875 inches
Min Bending Radius: 10.50 inches
Net Weight: 0.520 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
