14-19C Stranded Traffic Signal Cable IMSA 19-1, 600V

SKU
IMSA1914s19STR-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

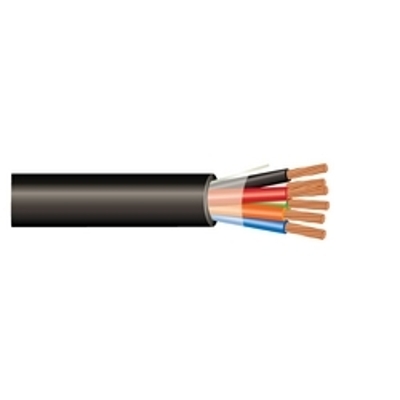

14-19C Stranded Traffic Signal Cable IMSA 19-1, 600V

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Minimum 100' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
Signal heads & pedestrian crossing.

Description:
Stranded Bare Copper Conductors Insulated with Polyethylene, Twisted Together and Finished with an Overall Black PVC Jacket.

Conductor:
Stranded Bare Copper per ASTM B-3

Insulation:
PE-Polyethylene

Jacket:
PVC - Polyvinyl Chloride

Color Code:
Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe

Standards:
The cable is manufactured to meet or exceed the latest International Municipal Signal Association (IMSA) Specification No. 19-1

Specifications*:

Size: 14 AWG
Number of Conductors: 19
Conductor Strand: Stranded
Outer Jacket Thickness: 0.060 inches
Outside Diameter:  0.740 inches
Voltage:  600V
Temp Rating:  75 C
Weight: 0.424 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size14 AWG
# of Conductors19 Conductors
O.D. (Inches)0.74
