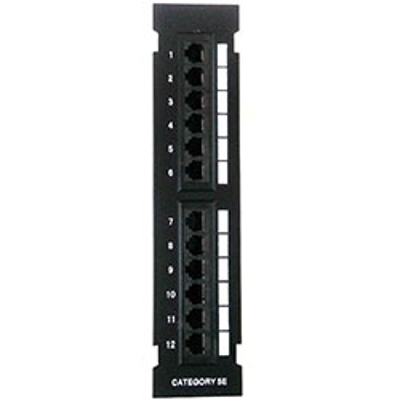

Cat5e 12 Ports Patch Panel

12-Port Vertical CAT5E Patch Panel


Product Details

Learn everything you want to know about this product to make an informed purchase

Cat5e 12 Ports Patch Panel

Cat5e 12 Ports Patch Panel

Voltage Rating: 125 VAC RMS
Current Rating: 1.5 AMP
Contact Resistance: 100 milliohms (max)
Insulation Resistance: 1000 megohms min @ 500 VDC
Dielectric Strength: 750 VAC RMS 60Hz, 1 min

Storage: -40 - +85 degree / C
Operation: 0 - +70 degree / C
Conform to TIA/EIA 568A Category 5e
Mates with modular plug conforming to FCC Part 6B Subpart F

Housing Material: PBT+15%GF UL 84V-O
Panel Frame: Carbon Steel, Powder Coating in Black Color
IDC Material: PC UL 94V-O
Contact: Phosphor Bronze with Nickel Plating
