12 AWG TelcoFlex III KS24194 L3

SKU TF312

$

1.440000

1.440000

/ft
How will you purchase this wire?
1.440000 1.440000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

.... .... .... .... ....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

12 AWG TelcoFlex III KS24194 L3

Color Length (ft.) Price
Gray

Length (ft.)

$1.44
add Add a length
Green

Length (ft.)

$1.44
add Add a length
Red

Length (ft.)

$1.44
add Add a length
Blue

Length (ft.)

$1.44
add Add a length
Black

Length (ft.)

$1.44
add Add a length
Grouped product items
Color Length (ft.)
Gray Length 500 ft.
$720.00
Green Length 500 ft.
$720.00
Red Length 500 ft.
$720.00
Blue Length 500 ft.
$720.00
Black Length 500 ft.
$720.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    12 AWG

  • # of Conductors

    1 Conductor

  • O.D. (Inches)

    0.247

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 3000'. Please call for different colors or longer put ups.

Applications:
TelcoFlex® III Central Office Power Wire and Cable Class B Strand With Braid. The Cable has low-smoke, lead-free and silicone-free non-halogenated insulation. UL Central Office Power Cable 105ºC dry, 60ºC wet. UL Listed RHH/LS FT4 and VW-1, 90ºC dry, 60ºC wet, 600 volts. Sizes 1/0 and larger are UL, CT USE rated. CSA AWM I B 105ºC, 600 volts.

Specifications:
Meets or exceeds the following:
UL Listed RHH/LS
FT-4 Flame Test
VW-1
ASTM B-33
Physical and Electrical tests in accordance with UL Standard 44 Requirements
CSA AWM I B 105ºC
IEC 60674 and 60332
RoHS / Reach Compliant

Construction:

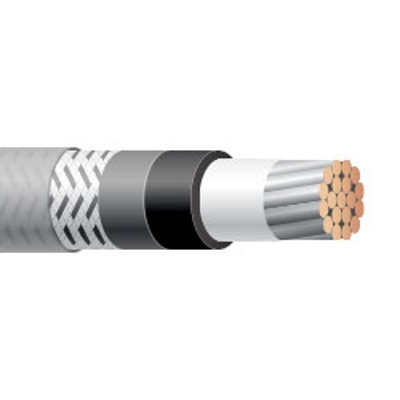

Southwire's TelcoFlex® lll cable is single conductor with a class B stranded tinned copper conforming to ASTM B-33 and Underwriters' laboratories requirements. An opaque mylar tape shall be applied over the conductor to facilitate stripping. Insulation is 90ºC rated low smoke, non-halogen, TelcoHyde™ 5221 conforming to Underwriters' Laboratories standard 44 and Telcordia Specification GR-347-CORE, also UL and CSA 105ºC AWM rated. The insulation has a limiting oxygen index of 35%.

Specifications*:

Size: 12 AWG
Conductor Strand: 7/.0305
Insulation Thickness: 0.045 inches
Outside Diameter: 0.247 inches
Weight: 0.041 lbs per ft
Max. D.C. Res. @ 20ºC: 1.720

*Data provided on this page is subject to change based on different manufacturers variances.
