12 AWG SRML SEWF-2 Wire, High Temperature Motor Lead Wire, UL 3070

Min: 50 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

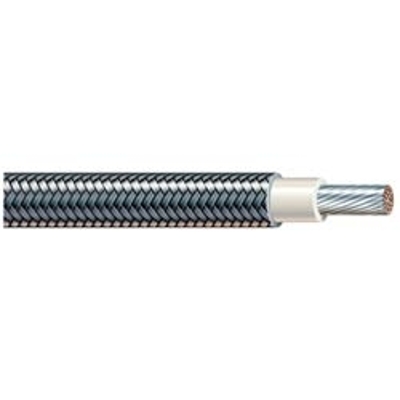

12 AWG SRML Wire, High Temperature Motor Lead Wire, UL 3070, 150C

SKU
SRML12-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put-ups.

Application:
SRML Wire is a high temperature wire used when high temperatures and abrasive environments are present. 12 AWG SRML Wire is suitable for use in 600V applications up to 150°C.

 Applicable Standards:

-  18-6 AWG meet the UL requirements for Styles 3069, 3070, 3101, 3123, 3127 (150°C),
 - CSA Type SEWF-2 (150°C)

Conductor:
 Tinned, annealed copper per ASTM B-33, Class H stranded per ASTM B-173 or Class K stranded per ASTM B-174

Insulation:
Silicone rubber

Jacket:
Fiberglass braid with a high temperature finishing

Specifications*:

Size: 12 AWG
Number of Strands: 65
Insulation Thickness: 0.030 inches
Braid Thickness: 0.005 inches
Outside Diameter: 0.170 inches
Weight: 0.032 lbs per ft
Ampacity: 50 Amps @
Voltage: 600 Volts
Max Temp: 150°C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeSRML
Wire Size12 AWG
# of Conductors1 Conductor
Conductor MaterialTinned Copper
Stranded or SolidStranded
Number of Strands65
O.D. (Inches)0.17
Ampacity50
Voltage600V
Temp. Rating150°C
Insulation MaterialSilicone Rubber
Jacket MaterialFiber Glass Braid
UL StyleStyle 3127, Style 3069, Style 3070
StandardsUL Listed, CSA Certified
