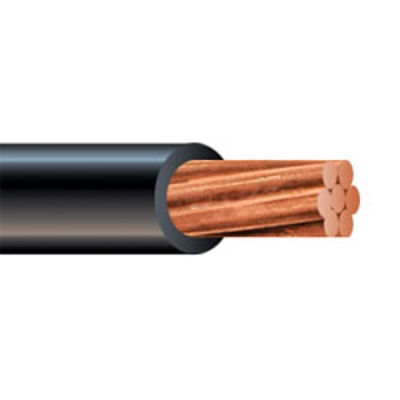

12 AWG Solar Photovoltaic Wire 600V UL 4703 (PV Wire), 500ft or 1000ft Spool

SKU PVXLU12SP

$

0.404200

0.404200

/ft
How will you purchase this wire?
0.404200 0.404200
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

.... .... ....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

12 AWG Solar Photovoltaic Wire 600V UL 4703 (PV Wire), 500ft or 1000ft Spool

Grouped product items
Color Length (ft.)
Black (19 Strand) Length 500 ft.
$202.10
Red (7 Strand) Length 500 ft.
$202.10
Red (19 Strand) Length 500 ft.
$202.10
Black (19 Strand) Length 1000 ft.
$404.20
Red (7 Strand) Length 1000 ft.
$404.20
Red (19 Strand) Length 1000 ft.
$404.20
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    Solar PV

  • Wire Size

    12 AWG

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    0.2

  • Ampacity

    30

  • Voltage

    600V

  • Insulation Material

    XLPE - Cross-linked Polyethylene

  • Direct Burial

    Yes

  • Sunlight Resistant

    Yes

  • Standards

    UL Listed, RoHS Compliant

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

#12 AWG Solar Photovoltaic (PV) Wire, 600V, 500ft or 1000ft Spool


Description:
Single copper conductor, stranded, insulated with moisture and heat resistant, XLP cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications.available.

Applications:
For use in Photovoltaic (PV) Solar Power Applications.
Rated for direct burial
Used to connect solar panels.

Features:
Stranded annealed copper conductors.
Sunilight resistant Cross-Linked Polyethelene (XLP) insulation
-40°C to +90°C

Standards:
ASTM B8
Listed as type USE-2 per UL 854
Listed as type RHH/RHW-2 per UL 44
Listed as type PV per UL 4703


Specifications*:

Size: 12 AWG
Number of Strands: 7
Volaltage: 600V
Insulation Thickness (Conductor): 0.060 inches
Outside Diameter: 0.20 inches
Weight: 0.029 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
