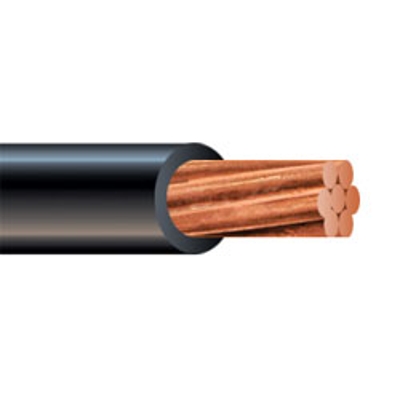

12 AWG Solar Photovoltaic Wire 600V UL 4703 (PV Wire)

12 AWG Solar Photovoltaic Wire 600V UL 4703 (PV Wire)
SKU PVXLU12

$

0.530000

0.530000

/ft
How will you purchase this wire?
0.530000 0.530000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

.... .... .... ....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

12 AWG Solar Photovoltaic Wire 600V UL 4703 (PV Wire)

Color Length (ft.) Price
Black (7 Strand)

Length (ft.)

$0.53
add Add a length
Black (19 Strand)

Length (ft.)

$0.53
add Add a length
Red (7 Strand)

Length (ft.)

$0.53
add Add a length
Red (19 Strand)

Length (ft.)

$0.53
add Add a length
Grouped product items
Color Length (ft.)
Black (7 Strand) Length 500 ft.
$265.00
Black (19 Strand) Length 500 ft.
$265.00
Red (7 Strand) Length 500 ft.
$265.00
Red (19 Strand) Length 500 ft.
$265.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    Solar PV

  • Wire Size

    12 AWG

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Stranded

  • O.D. (Inches)

    .20

  • Ampacity

    30

  • Voltage

    600V

  • Insulation Material

    XLPE - Cross-linked Polyethylene

  • Direct Burial

    Yes

  • Sunlight Resistant

    Yes

  • Standards

    UL Listed, RoHS Compliant

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

#12 AWG Solar Photovoltaic (PV) Wire, 600V

Description:
Single copper conductor, stranded, insulated with moisture and heat resistant, XLP cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications.available.

Applications:
For use in Photovoltaic (PV) Solar Power Applications.
Rated for direct burial
Used to connect solar panels.

Features:
Stranded annealed copper conductors.
Sunilight resistant Cross-Linked Polyethelene (XLP) insulation
-40°C to +90°C

Standards:
ASTM B8
Listed as type USE-2 per UL 854
Listed as type RHH/RHW-2 per UL 44
Listed as type PV per UL 4703


Specifications*:

Size: 12 AWG
Number of Strands: 7 or 19
Volaltage: 600V
Insulation Thickness (Conductor): 0.060 inches
Outside Diameter: 0.20 inches
Weight: 0.029 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
