Solar Photovoltaic (PV) Wire XLP/USE-2 or RHW-2 or RHH 90°C - 1kV/2kV Stranded Building Wire.

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft Spool
1000 ft Spool
Add a length

 Free Shipping on all orders over $1000

12 AWG Solar Photovoltaic Wire 1kV/2kV UL 4703 (PV Wire), 500ft or 1000ft Spool


Product Details

Learn everything you want to know about this product to make an informed purchase

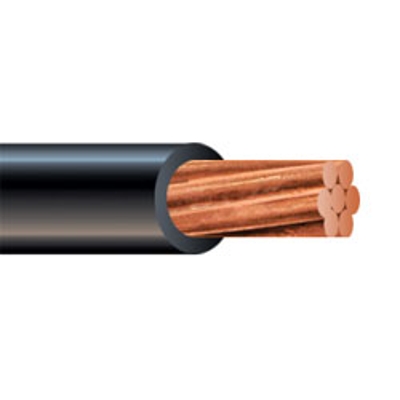

#12 AWG Solar Photovoltaic (PV) Wire, 1kV/2kV, 500ft or 1000ft Spool

Single copper conductor, stranded, insulated with moisture and heat resistant, XLP cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications.available.

For use in Photovoltaic (PV) Solar Power Applications.
Rated for direct burial
Used to connect solar panels.

Stranded annealed copper conductors.
Sunilight resistant Cross-Linked Polyethelene (XLP) insulation
-40°C to +90°C

Listed as type USE-2 per UL 854
Listed as type RHH/RHW-2 per UL 44
Listed as type PV per UL 4703


Size: 12 AWG
Number of Strands: 7
Volaltage: 1kV/2kV
Insulation Thickness (Conductor): 0.075 inches
Outside Diameter: 0.25 inches
Weight: 0.046 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeSolar PV
Wire Size12 AWG
Conductor MaterialBare Copper
Stranded or SolidStranded
O.D. (Inches)0.25
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
StandardsUL Listed, RoHS Compliant
