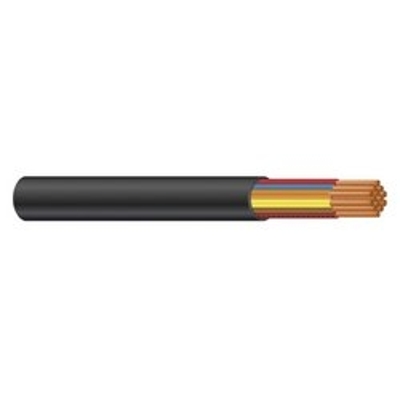

#12-5C XLP/LSZH Tray Cable, Low Smoke Zero Halogen - Cut To Length

Min: 100 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

#12-5C XLP/LSZH Tray Cable, Low Smoke Zero Halogen

SKU
LSZH125C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

#12-5C XLP/LSZH Tray Cable, Low Smoke Zero Halogen, 90°C, 600 V

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Minimum 50' to maximum 2500'. Please call for longer put ups.

Color:
Black

Applications:
Designed for power and control, telemetering, relay control, traffic control, switching, lighting and signal transmission. May be used in Class I, Div. 2 and Class II, Div. 2 Hazardous Locations per NEC Art. 501 and 502. These cables also conform to Art. 392 "Cable Trays" and Art. 336 "Power and Control Tray Cable."

Compliances:
Meets UL 1277 requirements for Type TC cables having XHHW-2 conductors, cables are listed for direct burial and meet the IEEE 1202 and UL 1685. 70,000 Btu/hr flame tests

Conductor:
Class B stranded bare copper per ASTM B-3 and B-8

Insulation:
Cross-Linked Polyethylene (XLP) per ICEA S-73-532 (NEMA WC57), meets UL 44 requirements for VW-1, Type XHHW-2 conductors

Jacket:
Sunlight-resistant low smoke zero halogen thermoplastic per UL 1277

Color Code:
ICEA Method 1, Table E-2 (formerly K-2)

Ampacity:
Based on not more than three conductors in raceway or cable or earth with an ambient temperature of 30ºC and a conductor temperature of 90ºC per NEC Table 310.16, the values have been derated where applicable

Specifications*:

Size: 12 AWG
Number of Conductors: 5
Minimum AVG Insulation Thickness: 0.030 inches
Minimum AVG Jacket Thickness: 0.045 inches
Outside Diameter: 0.520 inches
Weight: 0.194 lbs per ft
Amps Per Conductor: 24

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size12 AWG
# of Conductors5 Conductors
O.D. (Inches)0.52
Ampacity24
