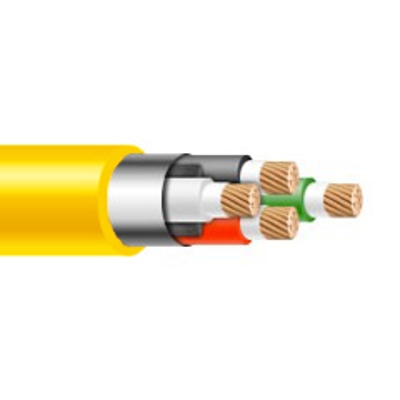

12/4 SOOW Yellow Portable Cord 600V UL/CSA
/ft.
/ft.
Product Details
Learn everything you want to know about this product to make an informed purchase Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25 ft. to maximum 1000 ft. Please call for longer put ups.
Color:
Yellow
Applications:
12/4 SOOW Yellow Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery
Also Known As:
12-4 SO Cord, Generator Cord, Yellow Rubber Cord, 12 Gauge 4 Wire Yellow Cord.
Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -40ºC to +90ºC
Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant
Construction:
Conductors:
18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.
Specifications*:
Size: 12 AWG
Number of Conductors: 4
Conductor Strand: 65/30
Insulation Thickness: 0.045 inches
Outside Diameter: 0.650 inches
Weight: 0.280 lbs per ft
Current Amps: 20
Color Code:
4 Conductors – Black, White, Red, Green
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Jacket Color | Yellow |
| Wire Size | 12 AWG |
| # of Conductors | 4 Conductors |
| Conductor Material | Bare Copper |
| Stranded or Solid | Stranded |
| O.D. (Inches) | 0.65 |
| Ampacity | 20 |
| Voltage | 600V |
| Temp. Rating | -50°C ~ 105°C |
| Flexibility | High Flexibility |
| Indoor/Outdoor Use | Indoor, Outdoor |
| Shielded | No |
| Standards | UL Listed, CSA Certified, RoHS Compliant, MSHA Approved |
| Features | Weather Resistant, Water Resistant, Oil Resistant |
| Color Code | Black, White, Red, Green |
