12/4-10/2-8/1 ABS Trailer Cable Wire

SKU
TRC12108

Product Details

Learn everything you want to know about this product to make an informed purchase

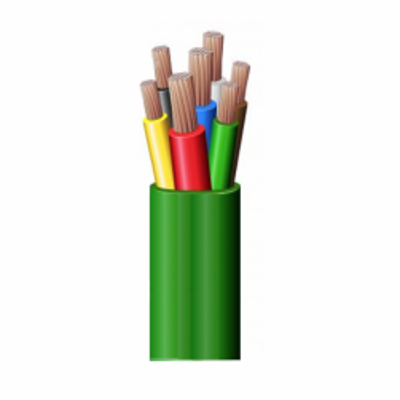

12 Gauge 4 Conductor + 10 Gauge 2 Conductor + 8 Gauge 1 Conductors ABS Trailer Cable Wire

Applications:
General-purpose primary wires enclosed in high quality green PVC jacket. Especially designed for durable use meeting the demands of anti-lock braking systems. Consists of 8 gauge ground wires, two 10 gauge stop-lamp, constant power circuit wires, and four circuit wires for power other lamps. All-copper stranded core is highly conductive maximizing current transfer while remaining flexible for easy installation. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: : Inner wires meet SAE J1128, SAE J378, SAE J2394

Color Code:
7 Conductors: White/Brown/DarkGreen/Red/Yellow/Black/Blue

Specifications*:

Size: 12 Gauge + 10 Gauge + 8 Gauge
Total Conductors: 7
Number of Strands: 65/30 + 105/30 + 168/30
Jacket Color: Green
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated –55°C (–67°F) to 80°C (176°F)
Outside Diameter: 0.690
Length: 100 ft or 500 ft
Weight: 0.417 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeTrailer Cable
Wire Size12 AWG
# of Conductors7 Conductors
O.D. (Inches)0.69
