12/3C Aluminum Armored Health Care Facilities Cable, 250ft or 1000ft Spool


Product Details

Learn everything you want to know about this product to make an informed purchase

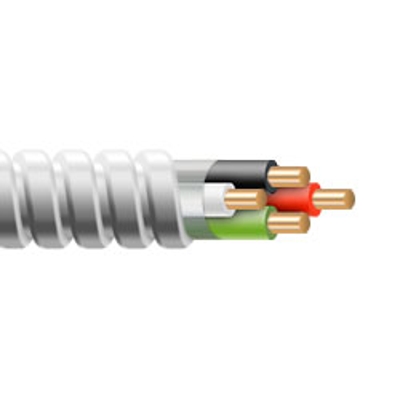

12-3C with Ground, Interlocked Aluminum Armor w/ Intermittent Green Stripes, Solid Copper Conductors

For use in hospitals, nursing homes and other health care facilities which specify cables containing an insulated copper grounding conductor.

Solid copper conductors; THHN (90°C) insulation with a green insulated ground; mylar tape; enclosed in galvinized steel interlocked cladding.

UL listed - Standards 68, 1497, 1569, 1581 & 2556. Conforms to Federal Speciciations A-A59544.

Size: 12 AWG
Number of Conductors: 3
Ground Size: 12 AWG
Outside Diameter: 0.521 inches


*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size12 AWG
# of Conductors3 Conductors
O.D. (Inches)0.521
