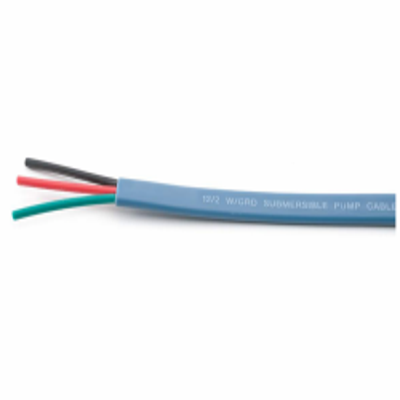

12/3 Ice Blue Submersible Pump Cable. Sold in 500ft or 1000ft Spools.
Product Details
Learn everything you want to know about this product to make an informed purchase12 AWG 3 Conductor w/ Grnd Ice Blue Flat Jacketed Submersible Pump Cable, 500ft or 1000ft Spools.
***Ships within 1-2 Business Days***
Applications:
For wiring within the casing of deep well submersible water pumps. Used in residential, farm and industrial water well applications.
Features:
Resistant to acid, abrasion, alkalis, flame, gas, and oil
Water resistant
Operating temperature range -65° C to 90° C
Sequential footage marking
Standard:
UL Listed as Deep Well Submersible Pump Cable.
Construction:
Conductors:
Annealed bare stranded copper conductors
Insulation:
Polyvinyl Chloride (PVC)
Jacket:
Blue PVC Jacket
Specifications*:
Size: 12 AWG
Number of Conductors: 3
Stranding: 65
Ground Wire Size: 12 AWG
PVC Insulation Thickness: 0.030 inches
Jacket Thickness: 0.030 inches
Nominal Cable Dimensions: 0.224 x 0.692 inches
Weight per foot: 0.121 lbs
*Stock photo image displayed. Please order based on product description.
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Wire Size | 12 AWG |
| # of Conductors | 3 Conductors w/ Ground |
| Conductor Material | Bare Copper |
| Jacket Color | Blue |
