$1.27 /ft.

In Stock

12/3 w/ Grnd Twisted Submersible Pump Cable. Cut To Length.

Min: 20 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

12/3 Twisted Submersible Pump Cable w/ Ground

SKU
TSP123WG-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

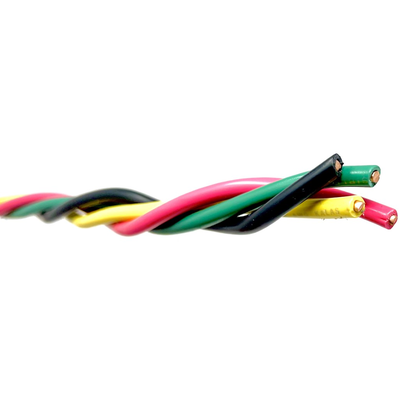

12/3 w/ Grnd Twisted Submersible Pump Cable

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'.

Applications:
For wiring within the casing of deep well submersible water pumps. Used in residential, farm and industrial water well applications.

Features:
Resistant to acid, abrasion, alkalis, flame, gas, and oil
Water resistant
Operating temperature range -40° C to 75° C
Sequential footage marking

Standard:
UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable.

Construction:

Conductors:
Annealed bare solid copper conductors - twisted

Insulation:
Polyvinyl Chloride (PVC)

Specifications*:

Size: 12 AWG
Number of Conductors: 3
Ground Wire Size: 12 AWG
Insulation Thickness: 0.045 inches
Twisted Nominal OD: 0.414 inches
Weight per foot: 0.125 lbs

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size12 AWG
# of Conductors3 Conductors w/ Ground
Conductor MaterialBare Copper
O.D. (Inches)0.414
