$74.95

In Stock

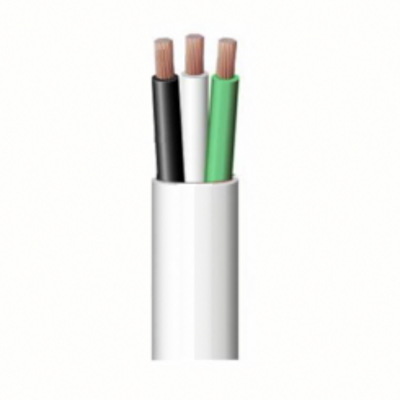

Marine Grade, 12/3 Triplex Marine Cable, Tinned Copper Stranding

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft.
500 ft.
Add a length

 Free Shipping on all orders over $1000

12/3 Triplex Marine Cable, Tinned Copper, UL 1426

SKU
MGBC12s3

Product Details

Learn everything you want to know about this product to make an informed purchase

Marine Grade, 12/3 Triplex Marine Cable (Boat Cable), Tinned Copper Stranding, UL 1426.  100ft or 500ft Length

Applications:
UL Listed, multi-conductor tinned wire with white jacket is ideal for use in the high corrosive environment of marine applications. Special electro-tinned, copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. Tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. Flame retardant, PVC insulation is highly resistant to water, oil, grease, gasoline, and other damaging solvents. High voltage tolerance of up to 600 volts adds to versatility to its use in multiple marine and other suitable applications.

Standards: Meets DOT and Coast Guard specs for electrical systems

Color Code:
3 Conductors: Black/White/Green

Specifications*:

Size: 12 Gauge
Conductors: 3
Number of Strands: 65/30
Jacket Color: White
Jacket Material: Polyvinylchloride (PVC)
Voltage: 600Volts
Temp: Rated at 105°C (221°F) dry and 75°C (167°F) wet
Outside Diameter: 0.245 x 0.575 inches
Length: 100 ft or 500 ft
Weight: 12 lbs per 100 ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size12 AWG
# of Conductors3 Conductors
O.D. (Inches)0.245 x 0.575 in.
