12 Gauge 3 Conductor Triplex Brake Cable, 100ft, 500ft, or 1000ft Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft.
500 ft.
1000 ft.
Add a length

 Free Shipping on all orders over $1000

12/3 Triplex Brake Cable, 100ft, 500ft, or 1000ft Spool

SKU
TBC12s3

Product Details

Learn everything you want to know about this product to make an informed purchase

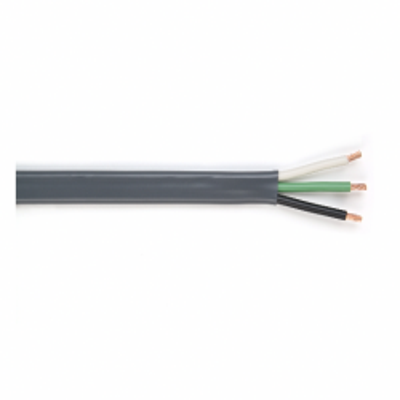

12/3 Triplex Brake Cable, 100ft, 500ft, or 1000ft Spool

Applications:
Three-conductor, general-purpose primary wires covered in a high quality PVC jacket. Especially ideal for use in truck, bus, tractor, light-duty boats, and general service applications. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128, SAE J378

Color Code:
3 Conductors: Black/Green/White

Specifications*:

Size: 12 Gauge
Conductors: 3
Number of Strands: 19/25
Jacket Color: Gray
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated at –30°C (–22°F) to 105°C (221°F)
Outside Diameter: 0.225 x 0.515 inches
Length: 100 ft, 500 ft, or 1000 ft
Weight: .100 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeBrake Cable
Wire Size12 AWG
# of Conductors3 Conductors
O.D. (Inches)0.225 x 0.515 in.
