Industrial Tray Cable, 600 Volts, 90°C Wet or Dry. Cut to length - sold by the Foot.

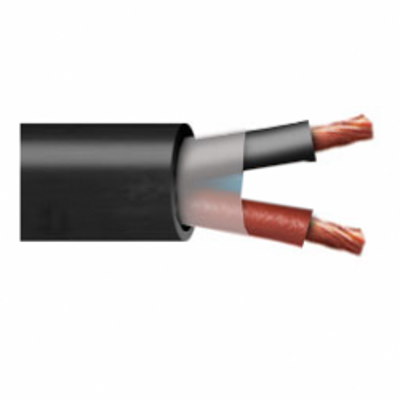

#12-2C XLP/PVC Tray Cable
Product DetailsLearn everything you want to know about this product to make an informed purchase
Industrial Tray Cable. 600 Volts, 90°C Wet or Dry
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 2500'. Please call for longer put ups.
XLP/PVC Control Cable is intended for use where flame retardance, and moisture/chemical resistance is critical. Cable can be installed in free air, in raceways or direct burial.The cable is also approved for wet or dry locations as well as Class 1 Division II industrial hazardous locations per NEC 501-4(b) for (UL) Type tray cables (TC).
Temperature rating of 90°C wet or dry. Insulation provides excellent electrical, thermal, and physical properties, excellent flame resistance and resistant to crush, compression, cuts and heat deformation. Also conductor insulation provides good low temperature (-25°C) cold bend characteristics.
- Insulated Conductor: XHHW-2, VW-1
- Cable: Direct Burial, sunlight resistant, ER rated
- UL Type TC, 90°C Wet or Dry, 600V
- Passes UL 1277 Flame Test (70,000 BTU/hr)
- Passes IEEE 383 Flame Test (70,000 BTU/hr)
- ICEA S-66-524, 90°C Wet or Dry, 600V & 1000V
- Passes IEEE 1202 Flame Test (70,000 BTU/hr)
- Passes ICEA T-29-520 Flame Test (210,000 BTU/hr)
Fully annealed stranded bare copper to ASTM B3
Class B stranding per ASTM B8
Extruded flame-retardant cross-linked polyolefin (XLP).
Flame-retardant, sunlight resistant, ER rated, Polyvinyl Chloride (PVC)
Conductors cabled together with fillers as needed to form a round core. A binder tape is applied over the core.
Size: 12 AWG
Number of Conductors: 2
Minimum AVG Insulation Thickness: 0.030 inches
Minimum AVG Jacket Thickness: 0.045 inches
Outside Diameter: 0.270 inches
Net Weight: .086 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||12 AWG|
|# of Conductors||2 Conductors|
|O.D. (Inches)||0.27 in.|
